Spot Welding Machines
Spot welding machines use the resistance heat generated by the current passing through themetal to melt the metal and form a welded joint,thereby achieving effective connection between two or more pieces of metal.
ADB-75T
Equipment category
Mid frequency inverter DC spot welding machine
Equipment model
ADB-75
Power
75KVA
Weight
100KG
Applicable venues
Welding of thin wires and terminals
Size
About 700*700*1600mm
ADB-130
Equipment category
Mid frequency inverter DC spot welding machine
Equipment model
ADB-130
Power
130KVA
Weight
420KG
Applicable venues
Spot welding M6-M8 nut projection welding
Size
About 1200*750*1800mm

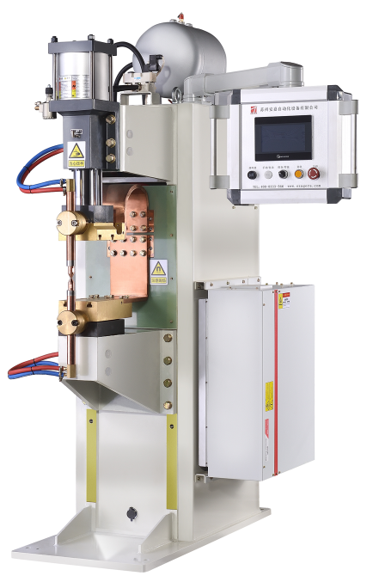

ADB-260
Equipment category
Mid frequency inverter DC spot welding machine
Equipment model
ADB-260
Power
260KVA
Weight
860KG
Applicable venues
M8-M12 nut projection welding
Size
About 1200*850*1880mm
ADB-690
Equipment category
Mid frequency inverter DC spot welding machine
Equipment model
ADB-690
Power
690KVA
Weight
2600KG
Applicable venues
Welding of multiple bumps or bosses
Size
About 1200*1100*2550mm
ADR-15000
Equipment category
Capacitive energy storage convex welding machine
Equipment model
ADR-15000
Power
20000J
Weight
1800KG
Applicable venues
M6-M8 nut projection welding, weldable hot forming
Size
About 1200*1400*2200mm
ADR-20000
Equipment category
Capacitive energy storage convex welding machine
Equipment model
ADR-20000
Power
20000J
Weight
1800KG
Applicable venues
M8-M12 nut projection welding, weldable thermoforming
Size
About 1300*1600*2300mm
ADR-30000
Equipment category
Capacitive energy storage convex welding machine
Equipment model
ADR-30000
Power
20000J
Weight
2800KG
Applicable venues
Nut projection and girth projection welding, weldable thermoforming
Size
About 1400*1600*2500mm
