Sawing Equipment
Sawing equipment can accurately cut and process various materials through different sawing methods (such as circular saws,bandsaws,etc.)and tools (such as hard alloy sawblades).

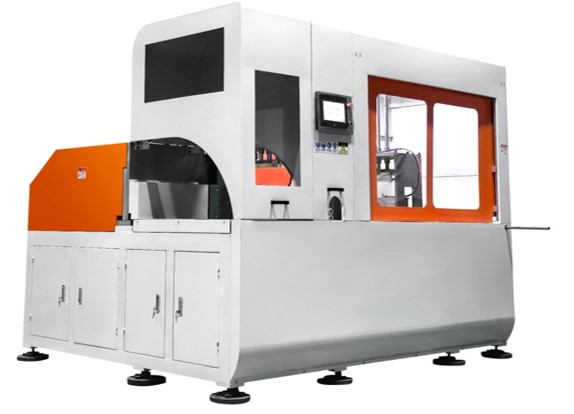

SDY-QF1000-Z
Equipment model
SDY-QF1000-Z
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
18KW (Depending on the material)
Maximum cutting width
700mm
Maximum cutting height
370mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 3300*2500*2300 mm
SDY-QF900-Z
Equipment model
SDY-QF900-Z
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
15KW (Depending on the material)
Maximum cutting width
630mm
Maximum cutting height
320mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 3200*2500*2300 mm
SDY-QF800-Z
Equipment model
SDY-QF800-Z
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
11KW (Depending on the material)
Maximum cutting width
550mm
Maximum cutting height
280mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 3100*2500*2300 mm
SDY-QF700-Z
Equipment model
SDY-QF700-Z
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
11KW (Depending on the material)
Maximum cutting width
550mm
Maximum cutting height
235mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 3100*1750*1850 mm

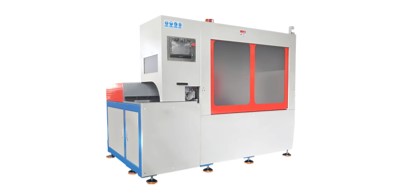

SDY-QF650-Z
Equipment model
SDY-QF650-Z
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
11KW (Depending on the material)
Maximum cutting width
480mm
Maximum cutting height
230mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 3000*1700*1850 mm
SDY-QF650-B
Equipment model
SDY-QF650-B
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
9KW (Depending on the material)
Maximum cutting width
480mm
Maximum cutting height
230mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 3000*1700*1850 mm

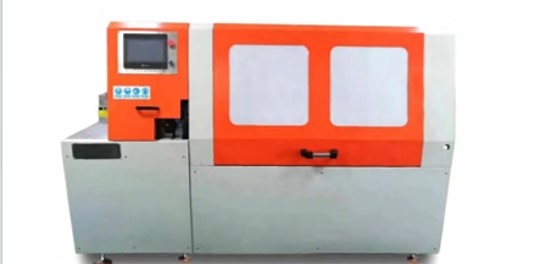

SDY-QF550-B
Equipment model
SDY-QF550-B
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
7.5KW (Depending on the material)
Maximum cutting width
400mm
Maximum cutting height
170mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 2900*1650*1850 mm
SDY-QF450-B
Equipment model
SDY-QF450-B
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
5.5KW (Depending on the material)
Maximum cutting width
340mm
Maximum cutting height
125mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 2300*1650*1650 mm

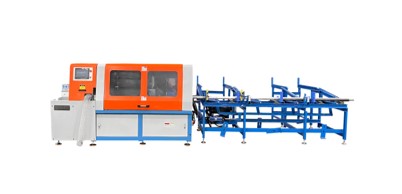

SDY-QF550-V
Equipment model
SDY-QF550-V
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
5.5KW (Depending on the material)
Maximum cutting width
400mm
Maximum cutting height
170mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 6200*1650*1850 mm

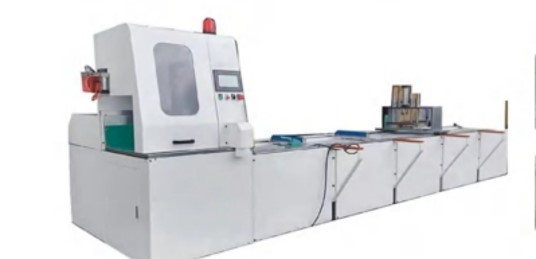

SDY-QF550-L
Equipment model
SDY-QF550-L
Supply voltage
380V/50Hz
Air source pressure
0.5~0.8Mpa
Main motor power
7.5KW (Depending on the material)
Maximum cutting width
400mm
Maximum cutting height
170mm
Cutting accuracy
±0.1mm
Overall dimensions of equipment
About 4200*1650*1850 mm
